3-Bedroom Ranch House Plan — 1,764 Sq Ft (Plan 1764)
by American Design Gallery|3 bedroom Ranch w/ 3-Car Garage, walk-in pantry, Hearth room and formal Dining
This 1,764 square foot Ranch-style home combines comfort and functionality, perfect for modern family living. With three bedrooms and two bathrooms, it offers ample space for relaxation and entertainment. The open floor plan features a cozy living room centered around a fireplace, while the well-appointed kitchen includes a walk-in pantry for added convenience. A charming nook with a bay window offers a sunny spot for casual dining, leading to a covered deck that extends your living space outdoors. The master suite is a private retreat with a spacious walk-in closet and ensuite bath. Thoughtful design elements, such as 9-foot ceilings and a covered porch, enhance the home's welcoming atmosphere. The optional finished basement provides additional space for growth, making this home adaptable to your family's evolving needs. With its appealing exterior and practical layout, this plan seamlessly blends style and comfort, making it an ideal choice for those seeking a versatile and inviting home.
Read full description →Features
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●Walk-In Pantry
Key Highlights
- ●1,764 sq ft, Ranch-style design
- ●3 bedrooms, 2 bathrooms
- ●Open living area with fireplace
- ●Kitchen with walk-in pantry
- ●Covered porch and deck

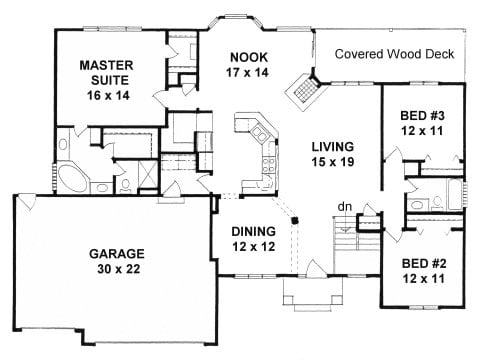

Floor Plan
Copyright 2026 ADG, Inc.

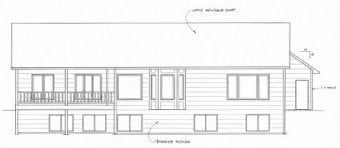

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1764 (66' × 48') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1764
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1764 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
9' plates L=206' (insulated)
Ceilings
9'- Thru-out
Basement
Approx. 1628 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 256 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 12' Base cabs L=15' Upper cabs L=16' Walk-in Pantry
Misc
Csmt windows Gas-log Fireplace
Similar Plans
- Plan #15652 bedroom Ranch w/ raised ceilings and Hearth room — 1565 sq ft
- Plan #15693 split-bedroom Ranch w/ bay windows and formal Dining — 1569 sq ft
- Plan #15712 bedroom Ranch w/ hearth room, partial covered deck and 3 car garage — 1571 sq ft
About Plan #1764

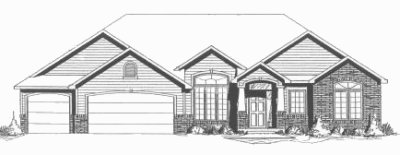

Exterior and Curb Appeal
This charming Ranch-style home spans 1,764 square feet, presenting a harmonious blend of traditional and contemporary design elements. The exterior showcases a combination of masonry and siding, creating a visually appealing facade. The inviting covered porch serves as the perfect introduction to this home, offering a warm welcome. The roof features a truss design with a 6/12 main pitch and an 8/12 front pitch, contributing to the home's classic silhouette. With its 66-foot width and 48-foot depth, this house fits comfortably on various lot sizes while maintaining a spacious feel.
Main Level Layout
The main level of this home is thoughtfully designed to maximize comfort and efficiency. The open floor plan fosters a sense of connectedness, with a living area centered around a cozy fireplace, ideal for family gatherings or quiet evenings. The kitchen, measuring approximately 12 by 12 feet, is equipped with base and upper cabinets, providing ample storage. A walk-in pantry adds extra convenience for culinary enthusiasts. Adjacent to the kitchen, a bright nook with a bay window offers a delightful dining space, seamlessly connecting to a covered wood deck for outdoor enjoyment.
Bedroom and Bathroom Arrangement
This home features three well-appointed bedrooms, ensuring comfort and privacy for all family members. The master suite is a standout, offering a spacious retreat with a walk-in closet and an ensuite bathroom that includes modern amenities. Located on the opposite side of the home, two additional bedrooms share a full bathroom, making this layout ideal for families or guests. The thoughtful separation of the master suite enhances privacy and tranquility.
Notable Features
Beyond its appealing layout, this home includes several notable features designed to enhance everyday living. The 9-foot ceilings throughout the living spaces create an open and airy atmosphere. The optional finished basement provides additional flexibility, offering the potential for a recreational room, two more bedrooms, and a full bathroom. This adaptability ensures the home can evolve with your family’s needs. A bay window and covered deck further enhance the home's charm, providing both aesthetic and functional benefits.
Additional Considerations
This home is designed with efficiency and comfort in mind, featuring insulated exterior walls measuring 206 feet in length. The basement, offering approximately 1,628 square feet of view-out potential, can be customized to suit various lifestyle preferences. The masonry on the front adds extra character, enhancing the home's curb appeal. Whether you’re looking to entertain guests or enjoy quiet family moments, this Ranch-style home provides a versatile and comfortable setting.
