3-Bedroom Ranch House Plan — 1,724 Sq Ft (Plan 1724)
by American Design Gallery|3 bedroom Ranch w/bonus room studio apartment over 3-Car Garage, walk-in pantry, Hearth room and formal Dining
Plan number 1724 is a beautifully crafted Ranch-style home offering 1,724 square feet of well-designed living space. This single-story layout includes three bedrooms and two bathrooms, providing ample room for a family or guests. The inviting exterior features a covered porch that adds charm and functionality. Inside, the living area is enhanced by vaulted ceilings and a cozy fireplace, creating a warm and open atmosphere. The kitchen is practical and stylish, complete with a walk-in pantry and a bar area for casual dining. A covered deck extends the living space outdoors, ideal for entertaining or relaxing. The master suite is a private retreat with a spacious walk-in closet and an ensuite bathroom. Two additional bedrooms share a well-appointed bathroom, ensuring comfort for all residents. Notable features such as plant shelves, a bay window, and an optional 476 square foot bonus room for a studio apartment add versatility to this charming home. The basement offers potential for further customization, making this plan adaptable to various needs.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Large Closet
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry
Key Highlights
- ●1,724 sq ft Ranch-style home
- ●3 bedrooms, 2 bathrooms
- ●Vaulted ceilings and cozy fireplace
- ●Covered porch and deck
- ●Optional 476 sq ft bonus room

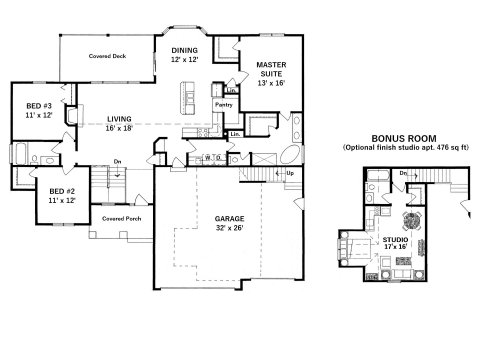

Floor Plan
Copyright 2026 ADG, Inc.

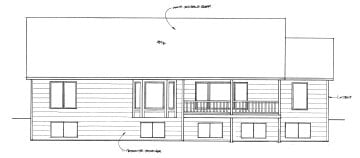

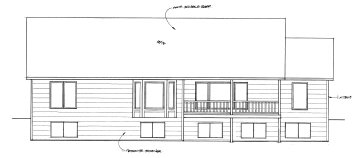

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1724 (62' × 56') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1724
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1724 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
8 or TJI
Walls
8' plates L=206' (insulated)
Ceilings
8' & vaulted 10' Bed #2
Basement
Approx. 1600 sq. ft View-out (daylight)
Opt'l Finish
Rec room 3 Bedrooms Full Bath
Masonry
Approx. 248 sq. ft Front only (includes front offsets)
Kitchen
Approx. 9' x 11' Base cabs L=15' Upper cabs L=17' Walk-in Pantry 7' Bar
Misc
476 square foot bonus space over the garage for studio apartment
Similar Plans
- Plan #15243 Bedroom Ranch, Walk-in Pantry, 3 Car Garage, Open Living — 1524 sq ft
- Plan #15252 bedroom Ranch w/ formal Dining and covered deck — 1525 sq ft
- Plan #15263 split-bedroom Ranch w/ vaulted ceilings, Jacuzzi tub and covered porch — 1526 sq ft
About Plan #1724
Exterior and Curb Appeal

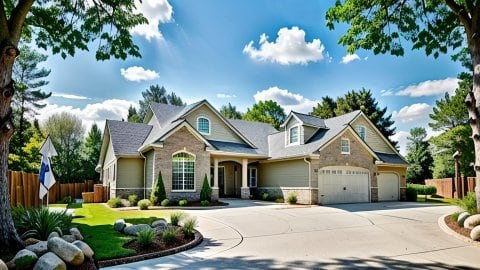

Plan number 1724 presents a timeless Ranch-style home with a classic exterior that exudes warmth and charm. The front masonry, covering approximately 248 square feet, adds a touch of elegance with its traditional design. A covered porch welcomes visitors, providing a cozy and sheltered space to enjoy the outdoors. The exterior is highlighted by well-placed windows, including a bay window that adds character and allows natural light to flood the interior.
Main Level Layout
Inside, the home spans 1,724 square feet with a thoughtful layout that maximizes functionality and comfort. The main living area features vaulted ceilings, creating an expansive and airy environment. A centrally positioned fireplace adds warmth and serves as a focal point for the living room. The adjacent dining area seamlessly connects to the kitchen, which is equipped with base and upper cabinets, a convenient walk-in pantry, and a bar for casual meals. The kitchen, measuring approximately 9' x 11', offers ample space for culinary activities.
Bedroom and Bathroom Arrangement
The home includes three bedrooms and two bathrooms, carefully arranged for privacy and convenience. The master suite, measuring 13' x 16', serves as a private oasis complete with a large walk-in closet and an ensuite bathroom, offering both comfort and practicality. The additional bedrooms are located on the opposite side of the house, sharing a well-appointed bathroom. Bedroom #2 features a unique 10-foot ceiling, enhancing its spacious feel. Each bedroom is designed to provide a peaceful retreat for residents.
Notable Features
This home plan is rich with features that cater to modern living. A 476 square foot bonus space above the garage offers flexibility for a studio apartment or additional living area, perfect for accommodating guests or creating a personal workspace. The basement, approximately 1,600 square feet, is designed as a view-out (daylight) space, ready for finishing to suit individual needs. The home's construction includes 8-foot insulated exterior walls, ensuring energy efficiency and durability. The truss roof system features a main pitch of 6/12 and a front pitch of 8/12, adding to the structural integrity of the house. Additional details such as plant shelves and a strategically placed bay window add aesthetic appeal and functionality.
