3-Bedroom Ranch House Plan — 1,704 Sq Ft (Plan 1704)
by American Design Gallery|4 bedroom Ranch - Home Office
Plan 1704 offers a spacious 1,704 sq ft Ranch-style design featuring three bedrooms and two bathrooms. This single-story home welcomes you with its charming exterior, complete with a covered porch and elegant bay window. Inside, the open floor plan boasts vaulted ceilings in the living area, creating an airy and inviting atmosphere. The kitchen, with ample cabinetry and a cozy nook, flows seamlessly into the dining room. The master suite serves as a private retreat, equipped with a walk-in closet and luxurious bathroom, while two additional bedrooms share a well-designed bath. Outside, a covered deck provides the perfect spot for relaxation. Additional features include plant shelves and a view-out basement, offering a mix of comfort and functionality, ideal for modern family living.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●10' Ceilings
Key Highlights
- ●1,704 sq ft Ranch-style home
- ●3 bedrooms, 2 bathrooms
- ●Vaulted ceilings and plant shelves
- ●Master suite with walk-in closet
- ●Covered porch and deck

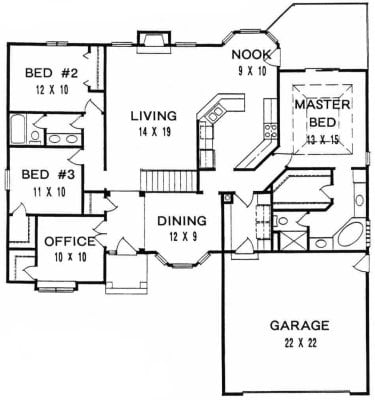

Floor Plan
Copyright 2026 ADG, Inc.

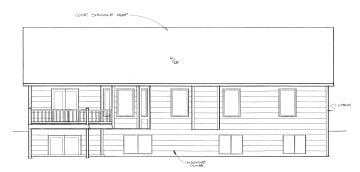

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1704 (54' × 56') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1704
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1704 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' plates 10' @ Dining & Foyer L=190' (insulated)
Ceilings
Slope to 10'- Living, Foyer & Nook 10'- Kitchen & Dining Coffer - MBR
Basement
Approx. 1578 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 296 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 11' Base cabs L=20' Upper cabs L=18'
Misc
Csmt windows Gas-log Fireplace
Similar Plans
- Plan #15043 bedroom Ranch w/ Vaulted ceilings, tandem 3-car Garage — 1504 sq ft
- Plan #15083 bedroom Ranch w/ Bay windows, Island Kitchen Bar and 3 car garage — 1508 sq ft
- Plan #15152 bedroom Ranch w/ Bay windows, 9' ceilings and a 3-way fireplace — 1515 sq ft
About Plan #1704

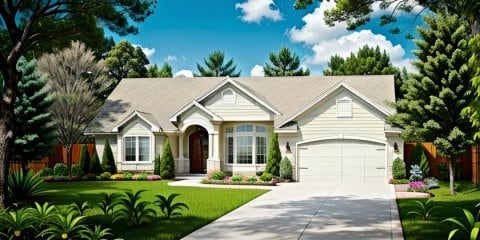

Exterior and Curb Appeal
This delightful Ranch-style home boasts an exterior that blends classic and contemporary elements. Spanning 1,704 square feet, it features a combination of masonry on the front and durable siding. The welcoming covered porch is perfect for enjoying morning coffee or evening sunsets. Architectural highlights, such as the elegant bay window, enhance both aesthetics and functionality, letting ample natural light into the interior spaces.
Main Level Layout
Upon entering, you're greeted by an open floor plan that emphasizes spaciousness and comfort. The living room, with its vaulted ceilings, becomes a central gathering point. A gas-log fireplace adds warmth and a cozy ambiance. The adjacent dining room is perfectly situated for easy access to the kitchen, which features ample base and upper cabinets, providing plenty of storage for all your culinary needs. A nook offers additional space for casual meals or morning breakfasts.
Bedroom and Bathroom Arrangement
The house accommodates three comfortable bedrooms, each thoughtfully designed for privacy and relaxation. The master suite is a highlight, featuring a bay window that adds charm and offers views of the surroundings. It also includes a spacious walk-in closet and a luxurious bathroom with a coffered ceiling. The two additional bedrooms are located on the opposite side of the home, sharing a well-appointed bathroom, making this layout ideal for families.
Notable Features
This home is rich in features that enhance both aesthetics and functionality. Vaulted ceilings and plant shelves add architectural interest throughout the living spaces. The covered deck extends the living area outdoors, providing a perfect space for entertaining or relaxing. Additionally, the view-out basement offers potential for further customization, with options for a recreation room, two more bedrooms, and a full bath. This flexibility makes the home adaptable to changing family needs, ensuring long-term satisfaction.
