3-Bedroom Ranch House Plan — 1,683 Sq Ft (Plan 1683)
by American Design Gallery|3 bedroom Ranch w/ Bonus room above oversized 2-Car Garage
Experience the charm of this 1,683 sq ft Ranch-style home, featuring three bedrooms and two and a half bathrooms. The single-story layout offers a spacious living area with vaulted ceilings, enhancing the open concept design. A cozy fireplace in the living room creates a warm gathering space, while the kitchen’s walk-in pantry and ample cabinetry provide practical storage solutions. Enjoy the outdoors with a covered porch and deck, perfect for relaxation or entertaining.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Large Closet
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●9' Ceilings
- ●Walk-In Pantry
- ●2 Car Garage
Key Highlights
- ●1,683 sq ft Ranch-style home
- ●3 bedrooms, 2.5 bathrooms
- ●Vaulted ceilings in living areas
- ●Covered porch and deck
- ●2-car garage with bonus room option

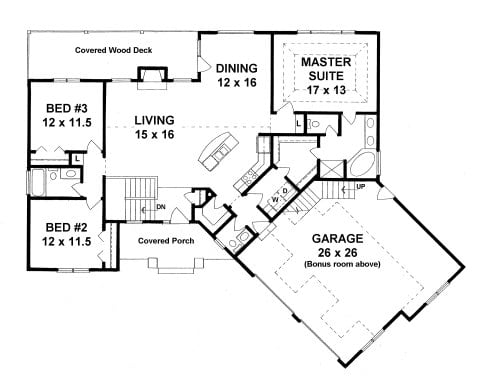

Floor Plan
Copyright 2026 ADG, Inc.

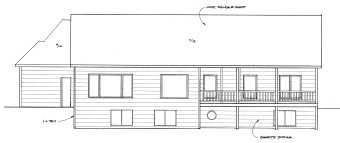

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1683 (72.5' × 56.5') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1683
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1683
Roof
7/12 main 9/12 front
Floor
Truss
Walls
9' Plates L= 182
Ceilings
9' throughout Vaulted Living, Dining & Kitchen Coffered MBR
Basement
1683 sq. ft
Opt'l Finish
Rec room 2 Bedrooms Full bath
Masonry
Stone - 428 sq. ft Brick - 136 sq. ft
Kitchen
Approx. 12' x 10' Base cabs L=14' Upper cabs L=11'
Misc
Walk-in Pantry Gas log fireplace Casement windows
Similar Plans
- Plan #14833 bedroom Ranch w/ vaulted ceilings, walk-in pantry and 3 car garage — 1483 sq ft
- Plan #14843 bedroom Ranch w/ walk-in pantry — 1484 sq ft
- Plan #1489 3 Car Garage bonus room and walk-in pantry — 1489 sq ft
About Plan #1683
Exterior and Curb Appeal

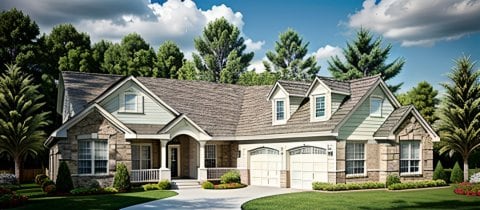

This Ranch-style house plan boasts a welcoming exterior with a blend of stone and brick accents that enhance its curb appeal. The front elevation features a charming covered porch, perfect for enjoying a morning coffee or greeting neighbors. The home's roofline is elegantly designed with a combination of 7/12 and 9/12 pitches, adding visual interest and sophistication.
Main Level Layout
Upon entering, you're greeted by a spacious living area with vaulted ceilings that create an airy atmosphere. The open floor plan seamlessly connects the living room, dining area, and kitchen, making it ideal for both daily living and entertaining. The kitchen, approximately 12' x 10', is equipped with a walk-in pantry and ample cabinetry, providing both style and functionality.
Bedroom and Bathroom Arrangement
This home features three well-appointed bedrooms. The master suite offers a private retreat with a coffered ceiling, adding an element of luxury. It includes a large walk-in closet and a well-designed en-suite bathroom. The additional bedrooms share a full bathroom, while a convenient half bath is accessible for guests.
Notable Features
The house is designed with thoughtful details throughout, such as plant shelves and large closets. The two-car garage includes an optional bonus room, providing flexibility for future expansion. Outdoor living is enhanced with a covered deck at the back, perfect for family gatherings or quiet evenings.
