3-Bedroom Ranch House Plan — 1,614 Sq Ft (Plan 1614)
by American Design Gallery|2 bedroom Ranch w/ Walk-in Pantry, Covered Deck and 3-Car Garage
Discover the perfect blend of style and functionality with this 1,614 sq. ft. ranch-style home. Featuring three bedrooms and two bathrooms, this single-story layout is designed for modern living. The inviting exterior showcases a welcoming covered porch and a charming bay window, setting the tone for the warmth inside. Step into a spacious living area with vaulted ceilings and a gas-log fireplace, ideal for cozy family gatherings. The kitchen, complete with a walk-in pantry, offers ample storage and convenience. The master suite is a private retreat with a coffered ceiling and a luxurious walk-in closet. Two additional bedrooms provide comfort for family or guests, sharing a well-appointed bathroom. A covered deck extends the living space outdoors, perfect for entertaining or relaxing. With thoughtful features like plant shelves and a mudroom bench, this home maximizes both style and utility. Ideal for those seeking comfort and practicality without sacrificing charm, this home is a splendid choice for families.
Read full description →Features
- ●Vaulted Ceilings
- ●Plant Shelves
- ●Bay Window
- ●Covered Porch
- ●Covered Deck
- ●Walk-In Closet
- ●Fireplace
- ●Walk-In Pantry
Key Highlights
- ●3 bedrooms, 2 bathrooms
- ●1,614 sq. ft. of living space
- ●Ranch-style with vaulted ceilings
- ●Bay window and plant shelves
- ●Covered porch and deck

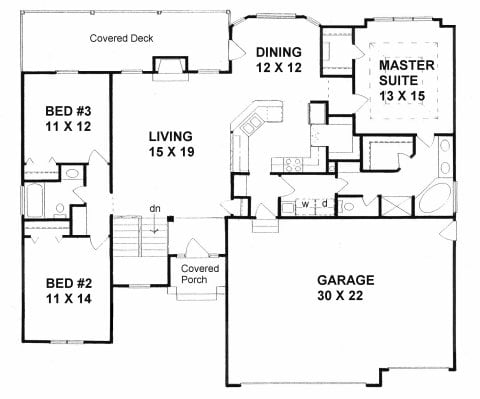

Floor Plan
Copyright 2026 ADG, Inc.

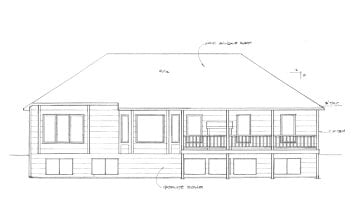

Elevation
Loading...
Will this plan fit your lot?
Enter your lot dimensions to see if Plan #1614 (56' × 50') fits
Try the Lot Analysis Tool →Have a question about this plan?
Ask about modifications, pricing, or anything else about Plan #1614
Send an Enquiry →Unlimited Licensing
- ✓Print as many copies as you need
- ✓Have changes made by your local draftsman
- ✓Share with your builder, engineer, and permitting office
- ✓Build the plan as many times as you want
- ✓One-time purchase, no recurring fees
Details
Heated Area
1614 sq. ft
Roof
Truss 6/12 main pitch 8/12 front pitch
Floor
Truss or TJI
Walls
8' & 10' plates L=189' (insulated)
Ceilings
8' Except... Vaulted - Living, Dining & Kitchen Coffered - MBR 9'- Garage
Basement
Approx. 1480 sq. ft View-out
Opt'l Finish
Rec room 2 Bedrooms Full Bath
Masonry
Approx. 260 sq. ft Front only (includes front offsets)
Kitchen
Approx. 12' x 10' Base cabs L=16' Upper cabs L=16'
Misc
Csmt windows Gas-log Fireplace Hidden Pantry Mudroom Bench Deep sink
Similar Plans
- Plan #14173 bedroom Ranch w/ Bay windows and tandem 3-Car Garage — 1417 sq ft
- Plan #14183 Bed 2 Bath Open Ranch with three car garage — 1418 sq ft
- Plan #14203 bedroom Ranch w/ Bay windows and tandem 3-Car Garage — 1420 sq ft
About Plan #1614

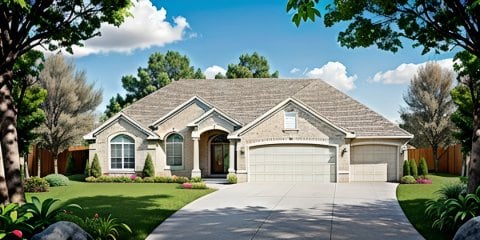

Exterior and Curb Appeal
This 1,614 sq. ft. ranch-style home is a testament to classic design and modern functionality. The front exterior combines brick masonry with a gabled roof, creating a welcoming and timeless appearance. A covered porch, supported by elegant columns, provides a perfect spot for outdoor relaxation and enhances curb appeal. The bay window not only adds architectural interest but also increases natural light inside the home, making it feel even more inviting.
Main Level Layout
Step inside to discover a thoughtfully designed main level that emphasizes openness and natural flow. The living room, measuring 15' x 19', serves as the heart of the home, featuring vaulted ceilings that amplify the sense of space. A gas-log fireplace adds a cozy touch, making this room perfect for family gatherings or quiet evenings. The adjacent dining area, 12' x 12', is ideal for meals and entertaining, seamlessly connecting to the kitchen. The kitchen itself is both functional and stylish, with an approximate size of 12' x 10'. It includes a walk-in pantry and ample cabinetry, ensuring plenty of storage for all your culinary needs.
Bedroom and Bathroom Arrangement
The master suite is a private haven, located on one side of the home for added privacy. It features a coffered ceiling that adds a touch of elegance and a spacious walk-in closet for all your storage needs. The en-suite bathroom is well-appointed, offering both convenience and luxury. On the opposite side of the home, two additional bedrooms provide comfortable accommodations for family members or guests. These bedrooms share a well-equipped bathroom, maintaining privacy and accessibility for everyone.
Notable Features
This home plan is rich with features that enhance both style and functionality. A covered deck at the rear expands the living space outdoors, providing an excellent venue for entertaining or enjoying quiet moments in the open air. Inside, details like plant shelves offer decorative possibilities, while the mudroom bench provides practical storage solutions for daily life. The home's design includes a truss roof system for structural integrity and an optional basement finish, offering the flexibility of additional living space if desired. With its blend of charm, functionality, and modern conveniences, this home offers exceptional value for families seeking comfort and style.
