Plan #2616d

Specifications

  • 2616 sq ft
  • 52′ wide x 37′ deep
  • 2 bedrooms
  • 2.5 baths

Features

  • Vaulted Ceilings
  • Bay Window
  • Covered Porch
  • Walk-In Closet
  • Fireplace
  • 9' Ceilings

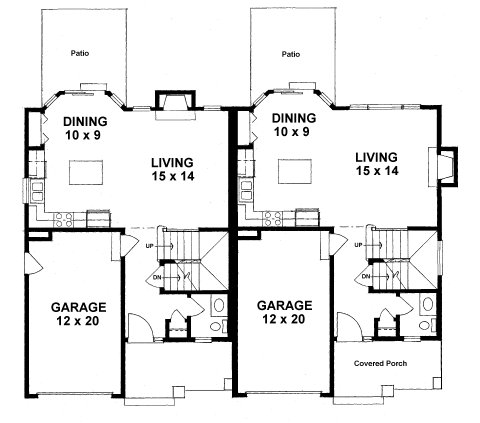

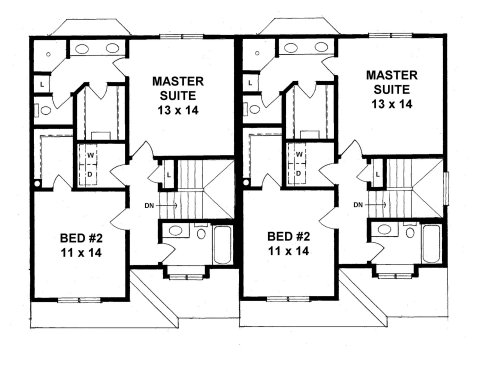

Floor Plan


Copyright 2018 ADG, Inc.

Elevation

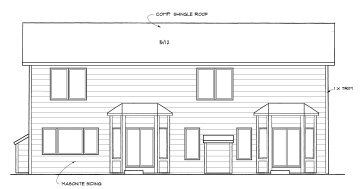

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

2616
each unit...1308
main floor... 560
upper floor.. 748

Roof

truss
5/12 pitch main
8/12 pitch front

Floor

2 x 10

Walls

9' plates main floor
8' plates upper floor

Ceilings

9' main floor
Vaulted Master Suite

Basement

approx. 550 sq ft each unit

(Opt'l Finish)

Bonus room
"rough" in 3/4 bath

Masonry

Brick wainscot

Kitchen

10 x 14

Misc

4' x 4' corner shower in MBR bath

NOTE: Overall dimensions include 2' cantilevered fireplaces and bay windows
