Plan #1569

Plan # 1569 - Ranch | Large render view

Specifications

  • 1569 sq ft
  • 52′ wide x 56′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Bay Window
  • Covered Porch
  • Covered Deck
  • Walk-In Closet

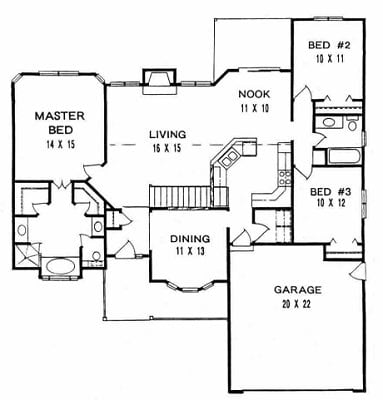

Floor Plan

Plan # 1569 - Ranch | First floor plan
Copyright 2000 ADG, Inc.

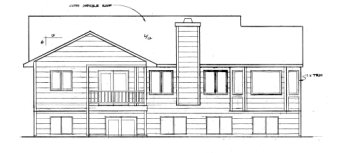

Elevation



Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1569 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' plates
L=202' (insulated)

Ceilings

Vaulted - Living, Kitchen,
Nook, MBR & Bath
Tray - Dining

Basement

Approx. 1425 sq. ft
View-out

(Opt'l Finish)

Rec room
1 Bedroom
Full Bath

Masonry

Approx. 174 sq. ft
Front only (includes
front offsets)

Kitchen

Approx. 11' x 10'
Base cabs L=17'
Upper cabs L=17'
18" Pantry

Misc

Csmt windows
W/B Fireplace
