Plan #1565

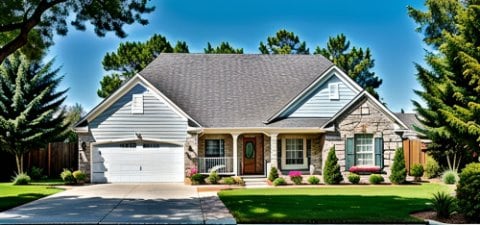

Plan # 1565 - Ranch | Large render view

Specifications

  • 1565 sq ft
  • 54′ wide x 52′ deep
  • 2 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Bay Window
  • Covered Porch
  • Covered Deck
  • Walk-In Closet
  • Fireplace
  • 10' Ceilings

Floor Plan

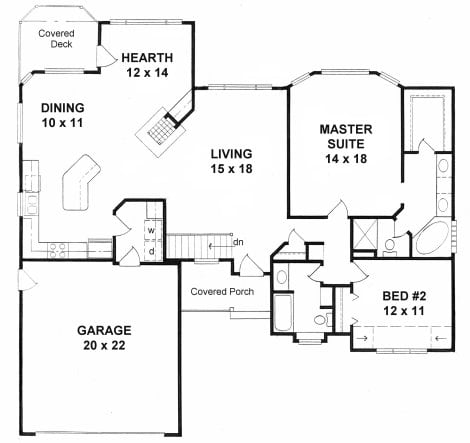

Plan # 1565 - Ranch | First floor plan
Copyright 1999 ADG, Inc.

Elevation

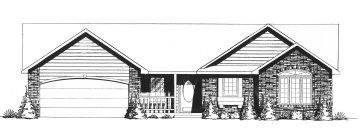

Alternate Elevation

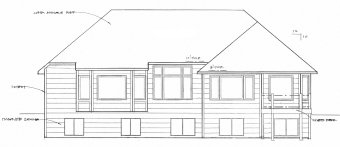

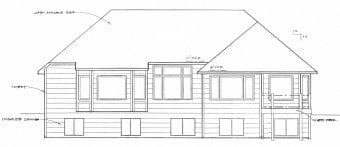

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1565 sq. ft

Roof

Truss
10/12 pitch

Floor

Truss or TJI

Walls

8' plates (10' Living Room)
L=194' (insulated)

Ceilings

Slope to 10' - Kitchen,
Nook & Hearth room
10' flat - Living
Coffer - MBR
part vault - Bed #2

Basement

Approx. 1436 sq. ft
View-out

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 312 sq. ft
Front only (includes
front offsets)

Kitchen

Approx. 11' x 13'
Base cabs L=24'
Upper cabs L=18'

Misc

Csmt windows
Gas-log Fireplace
