Plan #1182

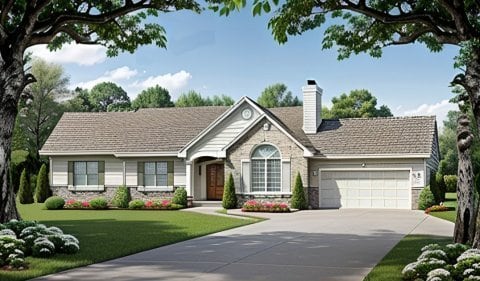

Plan # 1182 - Ranch | Large render view

Specifications

  • 1182 sq ft
  • 62′ wide x 30′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Covered Porch
  • Walk-In Closet
  • Fireplace

Floor Plan

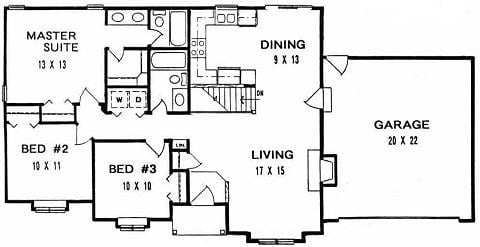

Plan # 1182 - Ranch | First floor plan
Copyright 1989 ADG, Inc.

Elevation



Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1182 sq. ft

Roof

Truss
6/12 main pitch
10/12 front pitch

Floor

Joist

Walls

8' plates
L=150' (insulated)

Ceilings

Basement

Vaulted - Living,
Dining & Kitchen

(Opt'l Finish)

Rec room
1 Bedroom
3/4 Bath

Masonry

Approx. 152 sq. ft
Front only (Includes
front offsets)

Kitchen

Approx. 8' x 10'
Base cabs L=14'
Upper cabs L=18'
18" Pantry

Misc

Csmt windows
W/B Fireplace
