Plan #1091

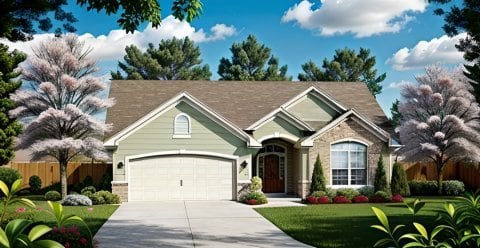

Plan # 1091 - Ranch | Large render view

Description

This unique plan offers an open living area with vaulted ceilings, plant shelves, Great room with bay window dining, island kitchen, luxury master suite in a split bedroom design. The rear deck has an option for a gable roof.

Specifications

  • 1091 sq ft
  • 42′ wide x 48′ deep
  • 2 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Bay Window
  • Covered Porch
  • Walk-In Closet

Floor Plan

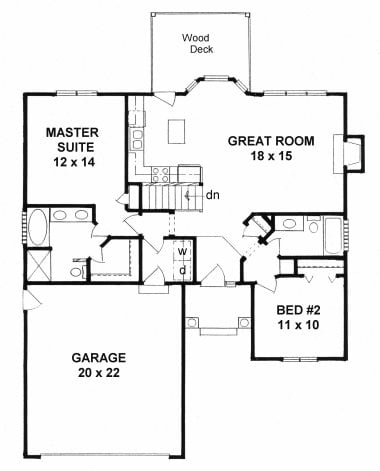

Plan # 1091 - Ranch | First floor plan
Copyright 2006 ADG, Inc.

Elevation

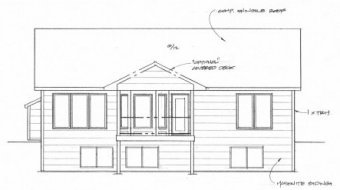

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1091 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' plates
L=152' (insulated)

Ceilings

Vaulted - Living, Dining,
Kitchen & MBR

Basement

Vaulted - Living, Dining,
Kitchen & MBR

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 160 sq. ft
Front only (Includes front offsets)

Kitchen

Approx. 9 1/2' x 11'
Base cabs L=14'
Upper cabs L=16'

Misc

Csmt windows
Opt'l Fireplace
