Plan #1058

Plan # 1058 - Bi-Level | Large render view

Description

3 bedroom 2 bath bi-level plan with vaulted ceilings, plant shelves, bay window dining and a fireplace. Very economical construction makes this a great starter home.

Specifications

  • 1058 sq ft
  • 42′ wide x 46′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Large Closet
  • Bay Window
  • Covered Porch
  • Fireplace

Floor Plan

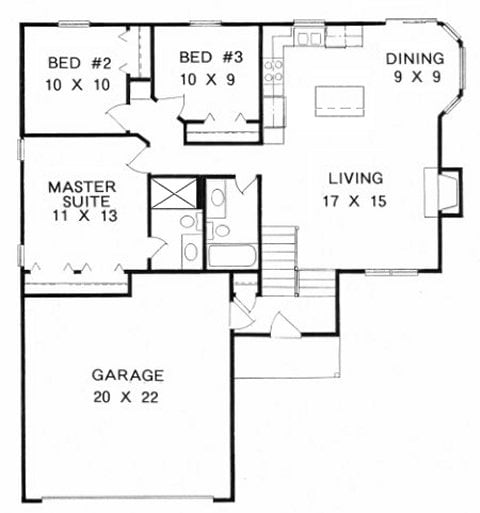

Plan # 1058 - Bi-Level | First floor plan
Copyright 1997 ADG, Inc.

Elevation

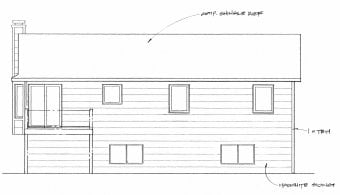

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1058 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' plates
L=144' (insulated)

Ceilings

Vaulted - Living,
Dining & Kitchen

Basement

Approx. 875 sq. ft
Full View-out

(Opt'l Finish)

Rec room
2 Bedrooms
Full Bath

Masonry

Approx. 172 sq. ft
Front only (Includes
front offsets)

Kitchen

Approx. 9 1/2' x 8'
Base cabs L=15'
Upper cabs L=18'
18" Pantry

Misc

Csmt windows
W/B Fireplace
