Plan #1039

Plan # 1039 - Ranch | Large render view

Description

Split bedroom plan with 9' ceilings, raised bar, open-end fireplace, main floor utility room and a walk-in closet.

Specifications

  • 1039 sq ft
  • 44′ wide x 44′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Covered Porch
  • Walk-In Closet
  • Fireplace
  • 9' Ceilings

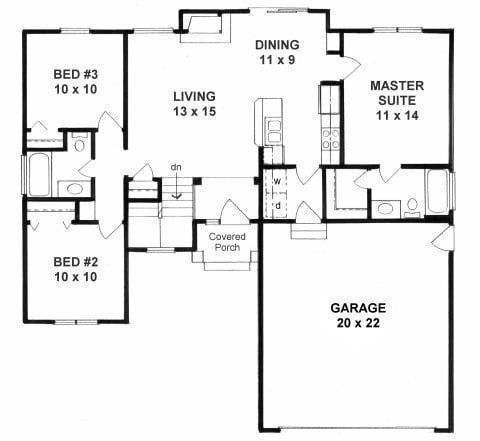

Floor Plan

Plan # 1039 - Ranch | First floor plan
Copyright 2010 ADG, Inc.

Elevation

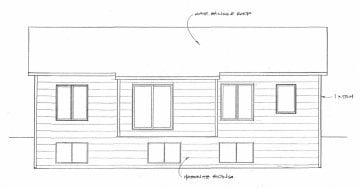

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1039 sq. ft

Roof

Truss
6/12 main pitch
8/12 front pitch

Floor

Truss or TJI

Walls

8' & 9' plates
L=154' (insulated)

Ceilings

9' - Thru-out

Basement

Approx. 918 sq. ft
View-out

(Opt'l Finish)

Rec room
1 Bedroom
Full Bath

Masonry

Approx. 168 sq. ft
Front only (Includes
front offset)

Kitchen

Approx. 8' x 8'+
Base cabs L=12'
Upper cabs L=10'

Misc

Csmt windows
Gas-log Fireplace
24" Pantry
