Plan #1024

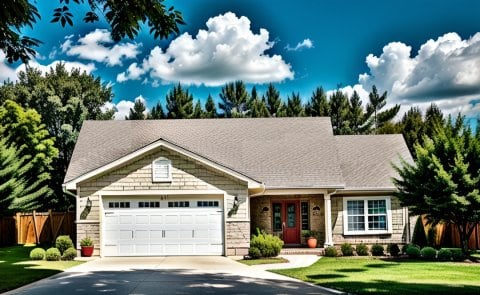

Plan # 1024 - Ranch | Large render view

Description

This 3 bedroom starter home is designed to be very economical, the basement is excavated as a simple 4 corner rectangle, the master closet is a cantilever and the Foyer is slab on grade. The living area is dressed up with vaulted ceilings, plant shelves and a wood burning fireplace.

Specifications

  • 1024 sq ft
  • 40′ wide x 44′ deep
  • 3 bedrooms
  • 2 baths

Features

  • Vaulted Ceilings
  • Plant Shelves
  • Large Closet
  • Covered Porch
  • Fireplace

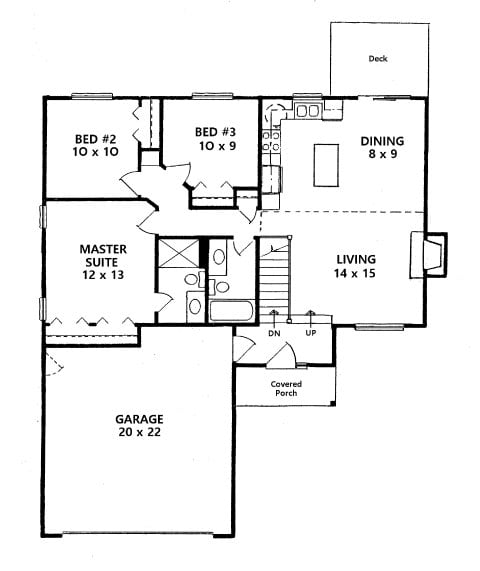

Floor Plan

Plan # 1024 - Ranch | First floor plan
Copyright 1989 ADG, Inc.

Elevation

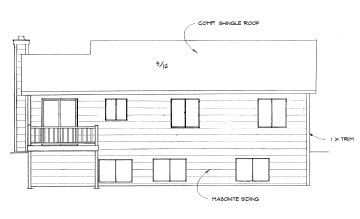

Rear Elevation

Purchase this Plan

Format





Options
(Click to Expand)

*(not available with instant delivery)

Extra Prints








Foundation





Walls



Mirror Reverse Plan



Rendering



Total: $

Modify this Plan

Click to Request a Quote

Similar Plans

No Similar Plans have been added

Details

Heated Area

1024 sq. ft

Roof

Truss
6/12 pitch

Floor

Joist

Walls

8' plates
L=140' (insulated)

Ceilings

Vaulted - Living,
Dining & Kitchen

Basement

Approx. 875 sq. ft
Full Basement

(Opt'l Finish)

Rec room
1 Bedroom
3/4 Bath

Masonry

Approx. 240 sq. ft
Front only (Includes front offsets)

Kitchen

Approx. 8' x 8'
Base cabs L=13'
Upper cabs L=16'
18" Pantry

Misc

Csmt windows
W/B Fireplace
