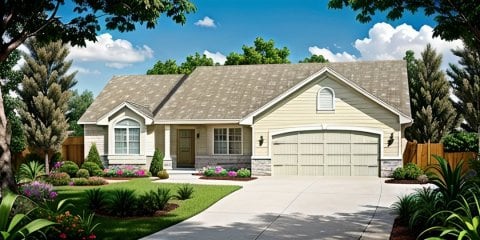

Plan #1190 - Ranch style small house plan w/split bedrooms

American Design Gallery
I n c o r p o r a t e d
( 8 8 8 ) 2 3 5 - 1 0 6 6

.
House
Plans

House plans from 1100 to 1200 sq ft...

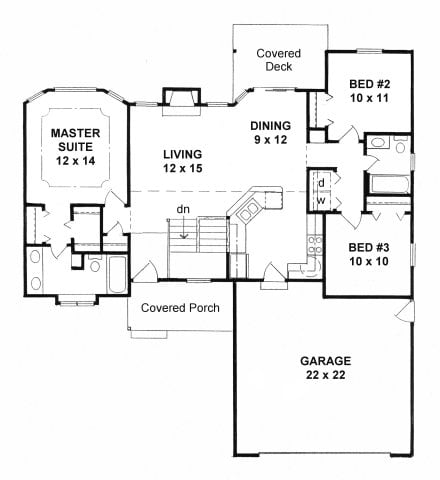

FEATURES:

Vaulted Ceilings
40" Stairs
Partial Covered Deck
His/Her Closets
Raised Bar
Plant Shelves
Main Floor Laundry
Covered Porch

Plan #1190

SPEC'S:

1190 sq ft
47' x 50'
3 Bedroom
2 Bath

PRICE CODE: A (more info)

(6) sets of Blueprints $520

(1) set Mylar/Vellum $620

ORDER NOW

Ordering Information

Contact

FAQ

Plan
Ordering

About us

Home

Customer
Support

Archives

.
.
Contractor's Corner

HEATED AREA:
1190 sq. ft
ROOF:
Truss
6/12 main pitch
8/12 front pitch
FLOOR:
Truss or TJI
WALLS:
8' plates
L=154' (insulated)
CEILINGS:
Vaulted - Living, Dining & Kitchen
Tray - MBR
BASEMENT:
Aprox. 1040 sq. ft
View-out (rear)
"Opt'l finish"
Rec room
1 Bedroom
Full Bath
MASONRY:
Aprox. 160 sq. ft
Front only (includes
front offsets)
KITCHEN:
Aprox. 11' x 11'
Base cabs L=14'
Upper cabs L=17'
MISC:
Csmt windows
Gas-log Fireplace
(Whats this?)
